Boom Specifications – Roll-and-Z-Fold Design

Height & Reach52X-5RZ
Vertical reach51.2 m167′ 11″
Horizontal reach47.2 m154′ 10″
Reach from front of truck45.16 m148′ 2″
Reach depth37.4 m122′ 8″
Unfolding height10.4 m34′ 1″
Boom Section Articulation
1st section articulation92 °
2nd section articulation180 °
3rd section articulation180 °
4th section articulation245 °
5th section articulation256 °

Boom Section Length
1st section length10.2 m33′ 6″
2nd section length8.85 m29′
3rd section length8.75 m28′ 8″
4th section length9.65 m31′ 8″
5th section length9.75 m32′
General Specs
Pipeline size (ID) metric ends125 mm5″
Rotation360 degree continuous swing
End hose – length3.5 m11’ 6″
End hose – diameter125 mm5″
Front Outrigger Spread: X-style, telescope & extend down9.3 m30′ 6″
Rear Outrigger Spread: Swing & extend down12.2 m40′

Pump Specifications

OutputRod side
Piston side
180 m3/hr
121 m3/hr
235 yd3/hr
158 yd3/hr
PressureRod side
Piston side
85 bar
130 bar
1,232 psi
1,886 psi
Material cylinder diameter230 mm9″
Stroke length2350 mm7’9”
Max strokesPer minute
Rod side
Piston side
1 minute
Volume controlZero to full
Vibrator StandardOption
Hard-chromed material cylindersStandard
Hydraulic systemClosed-loop
Hydraulic system pressure350 bar5,075 psi
Differential cylinder diameter140 mm5.5″
Rod diameter80 mm3″
Maximum size aggregate60 mm2.4″

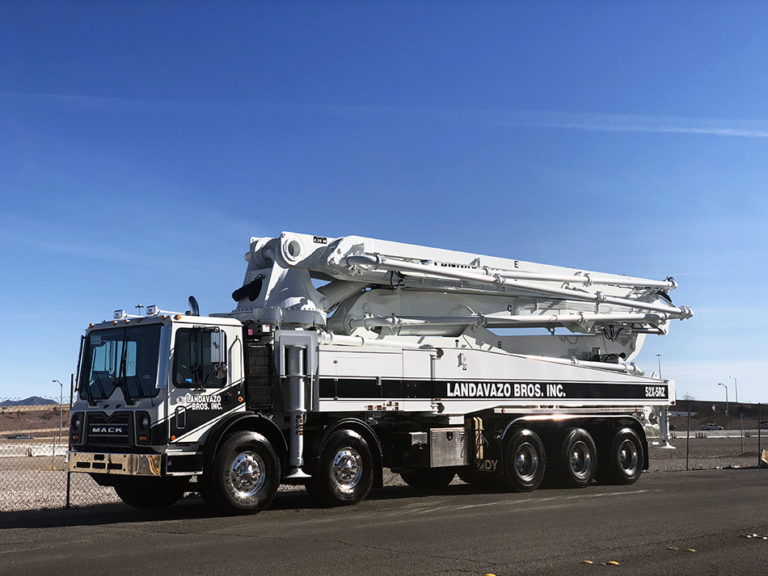

52-Meter RZ Concrete Boom Pumps

The 52X-5RZ concrete boom pump offers the optimal size and range for commercial and industrial concrete pouring projects. This powerful, highly advanced, five-section concrete boom pump is equipped with a 360-degree continuous swing boom for maximum flexibility and mobility at the job site, along with innovative X-style outriggers for superior truck stability in even the most challenging work environments, making it the ideal choice for reach concrete pumping. With our 52-meter concrete boom pump you’ll be able to meet any project demand and complete jobs more quickly and efficiently than ever.


Key 52X-5RZ Features and Benefits

The 52X-5RZ contains an impressive assortment of features that will add significant value to all your industrial and commercial construction projects:


Brief Synopsis of 52-Meter Concrete Boom Technical Specifications

The 52X-5RZ weighs approximately 92,000 lbs. and is equipped with a 211-gallon water tank. The concrete boom’s reach from the front of the vehicle is 148’ 2”, the reach depth equals 122’ 8” and the boom unfolding height is 34’ 1”. The five-section concrete boom pump features the following length breakdown:


DY Concrete Pumps Can Meet All Your Concrete Boom Pump Needs

At DY Concrete Pumps, we take pride in our ability to sell high-quality products at competitive prices. Our strategic partnership with DY Korea means we can offer the world’s best concrete boom pumps to construction operations of all types throughout North America. With more than 30 years of concrete pump expertise, you can count on us to have well-designed products that will solve your biggest concrete mixing and pouring challenges and exceed your performance expectations.

Whether you need technical support, start-up assistance or fast parts delivery, we’re always just a quick phone call away. Our staff also includes skilled field technicians who can provide reliable in-person support when needed.

To learn more about our five-section concrete boom pumps or to receive a customized quote, just call us today at (843) 552-6433.

Pump Working Range

Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.

Operator Friendly HBC Radio Remote
