| Height & Reach | 48x-5rz | |
|---|---|---|
| Vertical reach | 47.5 m | 155′ 10″ |
| Horizontal reach | 43.2 m | 141′ 9″ |
| Reach from front of truck | 40.66 m | 133′ 5″ |
| Reach depth | 34.1 m | 111′ 11″ |
| Unfolding height | 10.4 m | 34′ 1″ |
| Boom Section Articulation | |
|---|---|
| 1st section articulation | 92 ° |
| 2nd section articulation | 180 ° |
| 3rd section articulation | 180 ° |
| 4th section articulation | 245 ° |
| 5th section articulation | 250 ° |
| Boom Section Length | ||
|---|---|---|
| 1st section length | 9.5 m | 31′ 2″ |
| 2nd section length | 7.8 m | 25′ 7" |
| 3rd section length | 7.7 m | 25′ 3″ |
| 4th section length | 9 m | 29′ 6″ |
| 5th section length | 9.4 m | 30′ 10" |
| General Specs | |||
|---|---|---|---|
| Pipeline size (ID) metric ends | 125 mm | 5″ | |
| Rotation | 360 degree | ||
| End hose – length | 3.5 m | 11’ 6″ | |
| End hose – diameter | 125 mm | 5″ | |
| Front Outrigger Spread: X-style, telescope & extend down | 8.87 m | 29′ 1″ | |
| Rear Outrigger Spread: Swing & extend down | 9.6 m | 31′ 6" | |
| Output | Rod side Piston side | 160 m3/hr 108 m3/hr | 209 yd3/hr 141 yd3/hr |
| Pressure | Rod side Piston side | 87 bar 130 bar | 1,262 psi 1,886 psi |
| Material cylinder diameter | 230 mm | 9″ | |
| Stroke length | 2100 mm | 6’11” | |
| Max strokes | Per minute Rod side Piston side | 1 minute 31 21 |
|
| Volume control | Zero to full | ||
| Vibrator Standard | Option | ||
| Hard-chromed material cylinders | Standard | ||
| Hydraulic system | Closed-loop | ||
| Hydraulic system pressure | 350 bar | 5,075 psi | |
| Differential cylinder diameter | 140 mm | 5.5″ | |
| Rod diameter | 80 mm | 3″ | |
| Maximum size aggregate | 60 mm | 2.4″ | |

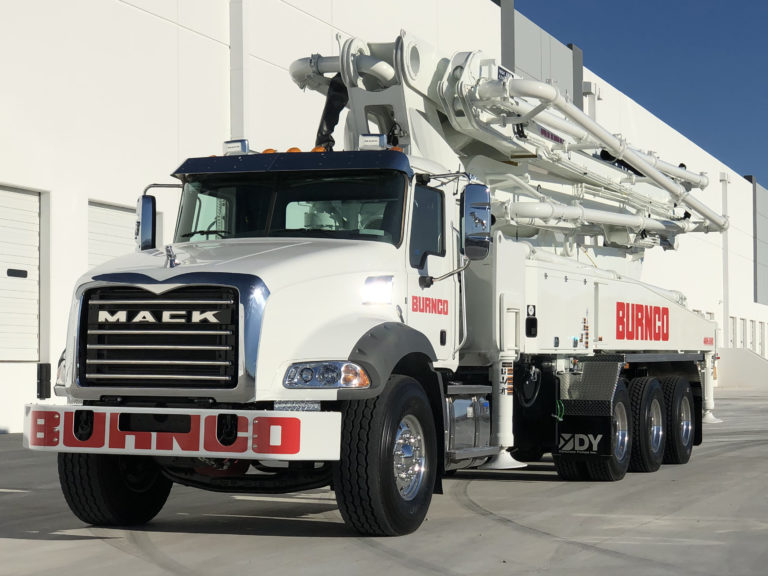

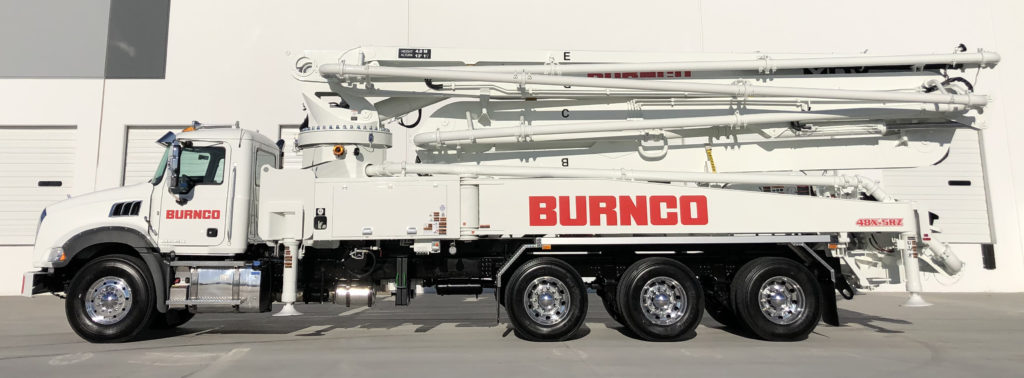

The 48X-5RZ concrete boom pump offers the optimal size and range for commercial and industrial concrete pouring projects. This powerful, highly advanced, five-section concrete boom pump is equipped with a 360-degree continuous swing boom for maximum flexibility and mobility at the job site, along with innovative X-style outriggers for superior truck stability in even the most challenging work environments, making it the ideal choice for reach concrete pumping. You’ll be able to meet any project demand and complete jobs more quickly and efficiently than ever.

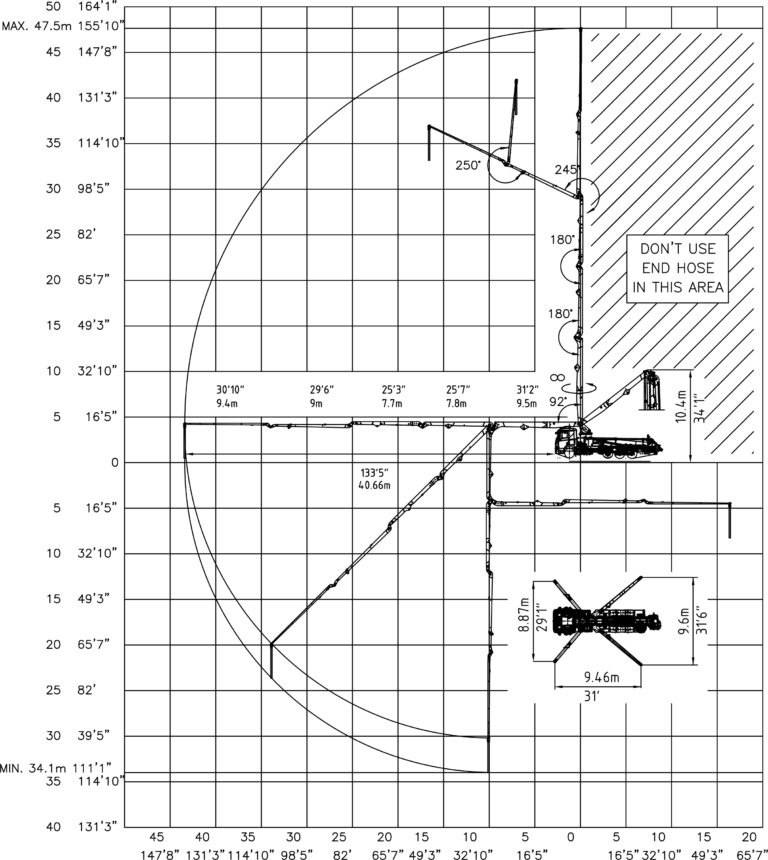

The 48X-5RZ weighs approximately 74,000 lbs. and is equipped with a 211-gallon water tank. The concrete boom’s reach from the front of the vehicle is 133’ 5”, the reach depth equals 111’ 11” and the boom unfolding height is 34’ 1”. The five-section concrete boom pump features the following length breakdown:
