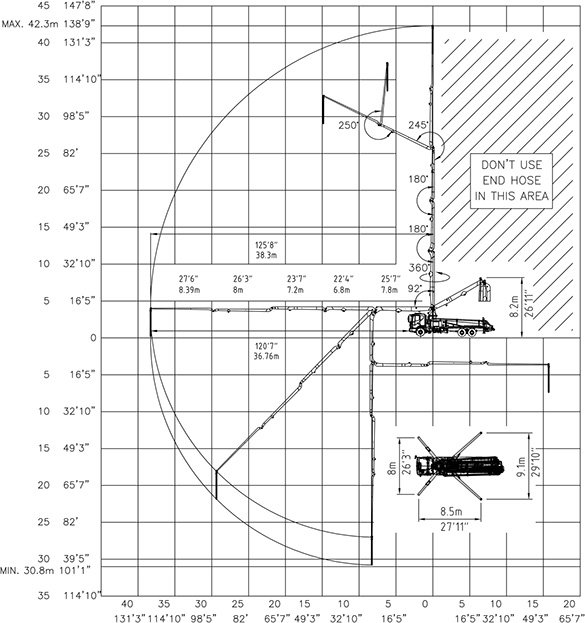

|Height & Reach||43X-5RZ|
|Vertical reach||42.3 m||138′ 9″|
|Horizontal reach||38.3 m||125′ 8″|
|Reach from front of truck||36.76 m||120′ 7″|
|Reach depth||30.8 m||101′ 1″|
|Unfolding height||8.2 m||26′ 11″|
|Boom Section Articulation|
|1st section articulation||92 °|
|2nd section articulation||180 °|
|3rd section articulation||180 °|
|4th section articulation||245 °|
|5th section articulation||250 °|
|Boom Section Length|
|1st section length||7.8 m||25′ 7″|
|2nd section length||6.8 m||22′ 4″|
|3rd section length||7.2 m||23′ 7″|
|4th section length||8 m||26′ 3″|
|5th section length||8.39 m||27′ 6″|
|Pipeline size (ID) metric ends||125 mm||5″|
|Rotation||360 degree continuous swing|
|End hose – length||3.5 m||11’ 6″|
|End hose – diameter||125 mm||5″|
|Front Outrigger Spread: X-style, telescope & extend down||8 m||26′ 3″|
|Rear Outrigger Spread: Swing & extend down||9.1 m||29′ 10″|
|Material cylinder diameter||230 mm||9″|
|Stroke length||2100 mm||6’11”|
|Max strokes||Per minute|
|Volume control||Zero to full|
|Hard-chromed material cylinders||Standard|
|Hydraulic system pressure||350 bar||5,075 psi|
|Differential cylinder diameter||140 mm||5.5″|
|Rod diameter||80 mm||3″|
|Maximum size aggregate||60 mm||2.4″|
When you work in concrete pumping and construction, it pays to have equipment that offers the versatility and performance you need to tackle a variety of jobs efficiently. When you’re looking for a solution for both residential and commercial projects, an RZ 43-meter concrete boom pump is a must-have for your fleet.
DY Concrete Pumps Inc. has been meeting the needs of customers throughout Canada and the United States for more than 30 years. Our experienced team will assist in analyzing your projects to identify the RZ boom concrete pumps, parts and accessories required to maximize your productivity and improve your bottom line.
Our RZ-fold concrete boom pumps are available in light- to medium-weight units providing the mobility to navigate high-traffic job sites, busy urban areas and quiet residential neighborhoods. The five-section boom design and continuous swing pedestal offers the flexibility to reach into tight spaces and is ideal for high-volume indoor pouring.
The RZ boom concrete pump design is a simplified, more versatile version of the Z-boom format, allowing for easier operation in a broader range of applications including:
Our 43-meter concrete boom pump is among the most popular models in our inventory. DY truck-mounted pumps use less water than other mixing methods for concrete with improved structural integrity and lasting performance with minimal maintenance requirements. We manufacture these units using robotic-welded and high-quality steel — they also feature Rexroth hydraulic pumps, Honeywell PBC control panels and HBC radio remote controls. Additional benefits of purchasing DY RZ boom pumps include:
At DY Concrete Pumps, we’re “Taking Utilization to a New Level!” Experience the difference of purchasing from a trusted source of productive and reliable equipment. Contact us today at (843) 552-6433 for more information, or to request a quote on a 43-meter RZ concrete boom pump.

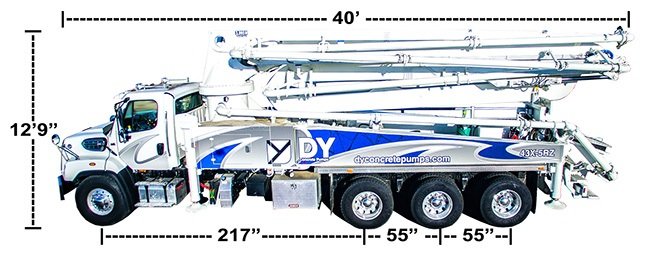

Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.
