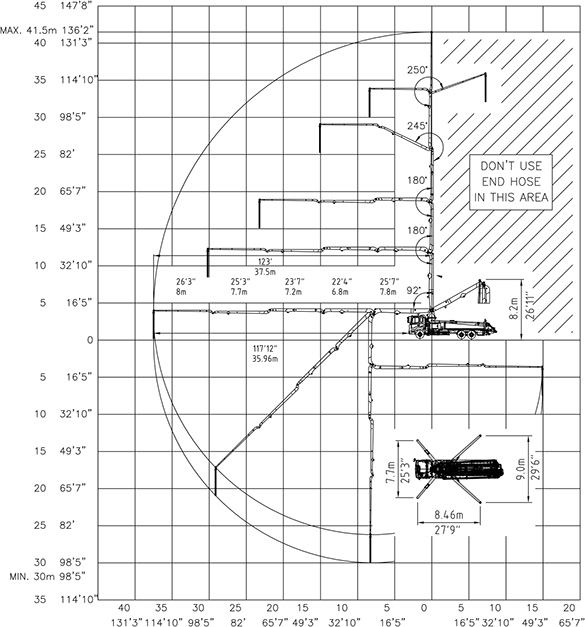

|Height & Reach||42X-5RZ|
|Vertical reach||41.5 m||136′ 2″|
|Horizontal reach||37.5 m||123′|
|Reach from front of truck||35.96 m||118′|
|Reach depth||30 m||98′ 5″|
|Unfolding height||8.2 m||26′ 11″|
|Boom Section Articulation||42M|
|1st section articulation||92 °|
|2nd section articulation||180 °|
|3rd section articulation||180 °|
|4th section articulation||245 °|
|5th section articulation||250 °|
|Boom Section Length|
|1st section length||7.8 m||25′ 7″|
|2nd section length||6.8 m||22′ 4″|
|3rd section length||7.2 m||23′ 7″|
|4th section length||7.7 m||25′ 3″|
|5th section length||8 m||26′ 3″|
|Pipeline size (ID) metric ends||125 mm||5″|
|End hose – length||3.5 m||11’ 6″|
|End hose – diameter||125 mm||5″|
|Front Outrigger Spread: X-style, telescope & extend down||7.7 m||25′ 3″|
|Rear Outrigger Spread: Swing & extend down||9 m||29′ 6″|
|Material cylinder diameter||230 mm||9″|
|Stroke length||2100 mm||6’11”|
|Max strokes||Per minute|
|Volume control||Zero to full|
|Hard-chromed material cylinders||Standard|
|Hydraulic system pressure||350 bar||5,075 psi|
|Differential cylinder diameter||140 mm||5.5″|
|Rod diameter||80 mm||3″|
|Maximum size aggregate||60 mm||2.4″|

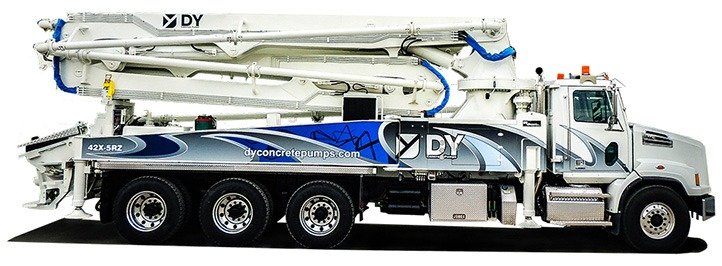

If you’re looking to add a lightweight yet powerful and dependable concrete boom pump to your construction equipment fleet, our 42-meter concrete boom pump can meet your needs. Ideally suited for both commercial and residential construction projects, the 42X-5RZ offers unmatched versatility and maneuverability. You’ll be able to complete more work in less time and with greater efficiency than ever, enhancing your construction company’s performance and profitability.
The 42X-5RZ concrete boom pump offers a host of features and benefits that will have a positive impact on all your residential and commercial concrete pouring projects:
Our 42-meter concrete boom pump features a horizontal reach capacity of 123’. The reach capacity from the front of your vehicle is 118’. The boom pump’s reach depth is 98’ 5” and the total unfolding height is 26’ 11”. Standard features include hard-chromed material cylinders and a hopper vibrator. The diameter of the cylinders is 9”.
Our strategic alliance with DY International in Korea enables DY Concrete Pumps to serve the needs of the entire North American marketplace. Our more than 30 years of concrete boom pump manufacturing expertise allows us to offer high-quality, easy-to-use products at competitive prices along with world-class support. We provide fast, efficient service to our large and growing North American customer base. This includes in-person visits from well-trained field sales personnel, reliable telephone technical support and complete start-up assistance so you can learn how to use your new concrete pump the right way.
You’ll also enjoy fast access to parts for our 42-meter concrete boom pump and every other product in our inventory. We understand the importance of getting parts quickly to minimize disruptions to your construction operation. That’s why we offer same- and next-day shipping for all replacement parts.
For more information about the 42-meter concrete boom pump from DY Concrete Pumps, just contact us at (843) 552-6433. We’ll also be happy to provide a no-obligation pump quote.
Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.
