Boom Specification – Roll-and-Z-Fold Design

Height & Reach33X-5ZZ
Vertical reach32.2 m105’7″
Horizontal reach27.9 m91’6″
Reach from front of truck25.6 m82’7″
Reach depth20.6 m67’7″
Unfolding height5.8 m19′
Boom Section Articulation
1st section articulation90 °
2nd section articulation180 °
3rd section articulation245 °
4th section articulation180 °
5th section articulation255 °

Boom Section Length
1st section length7.9 m25’11”
2nd section length5 m6’5″
3rd section length5 m6’5″
4th section length5.25 m17’3″
5th section length5.25 m17’3″
General Specs
Pipeline size (ID) metric ends125 mm5″
Rotation360 degree continuous swing
End hose – length3.5 m11’6″
End hose – diameter125 mm5″
Front Outrigger Spread: Swing out, telescope & extend down5.5 m18’1″
Rear Outrigger Spread: Swing & extend down6.5 m21’4″

Pump Specifications

Outputrod side
piston side
160 m3/hr
108 m3/hr
209 yd3/hr
141 yd3/hr
Pressurerod side
piston side
85 bar
130 bar
1,232 psi
1,886 psi
Material cylinder diameter230 mm9″
Stroke length2100 mm6’11”
Stroke lengthper minute
rod side
piston side
1 minute
Volume ControlZeor to full
Hydraulic system pressure350 bar5,075 psi
Differential cylinder diameter140 mm5.5″
Rod diameter80 mm3″
Maximum size aggregate60 mm2.4″

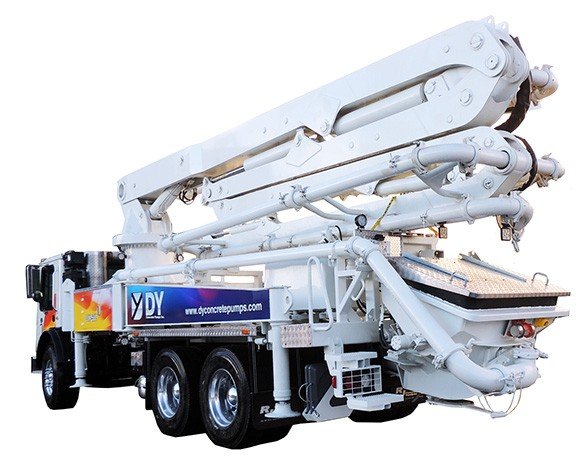

33-Meter ZZ Concrete Boom Pumps

The 33X-5ZZ concrete boom pump is the ideal choice for residential and commercial construction job sites requiring less range and more mobility. This 33-meter concrete boom pump features a 360-degree, continuous swing, five-section, true-double Z boom that provides maximum versatility. The pump is designed to unfold and open in tight spaces and can unfold under a 19 foot ceiling height, making it perfect for working in and around existing structures as well as under bridge decks and other overhead obstructions.


What Benefits Does the ZZ Concrete Boom Pump Provide?

If you’re in the construction business and need a fast, efficient method for pouring concrete, our 33-meter concrete boom pump offers the following benefits:


Double Z Concrete Boom Pump Features/Specifications

The 33X-5ZZ construction concrete boom pump features a maximum horizontal reach of 91’ 6”. This truck-mounted five-section boom offers a reach capacity of 82’ 7” from the front of the vehicle. The boom’s reach depth is 67’ 7” while the total unfolding height required is only 19’. The operator-friendly HBC remote makes the Double Z concrete boom pump easy to use.

DY Concrete Pumps: Offering More Than 30 Years of End User Experience

DY Concrete Pumps has been providing innovative solutions for construction industry applications for over three decades. During this time, we’ve developed a solid reputation for offering high-quality products at competitive prices. We’ve also established a strong presence in the North American marketplace. We’re able to provide prompt, reliable sales, service and technical support to companies all across the continent.

We also carry an extensive inventory of replacement parts and offer same or next-day parts shipping.


Contact Us to Learn More About the 33X-5ZZ Concrete Boom Pump

Contact us at (843) 552-6433 for more information about how our Double Z concrete boom pump can improve productivity and increase efficiency at your residential construction sites.

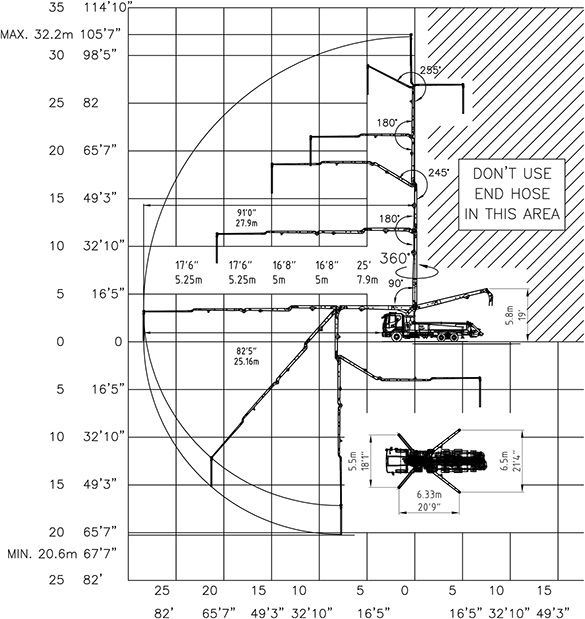

Pump Working Range

Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.

Operator Friendly HBC Radio Remote
